Mecanum wheels QLM Series

The maximum load of QLM series omni wheel is 2000kg, and the wheel maintains a high accuracy. This wheel uses integrated molding process, maximizing the mechanical properties of materials. The driven wheel material can be rubber or polyurethane according to customers' requirements. QLM series omni wheel use ball bearing design with godd performance in stability, quietness, durability and omni-direction. They are able to adapt to various indoor and outdoor occasions.

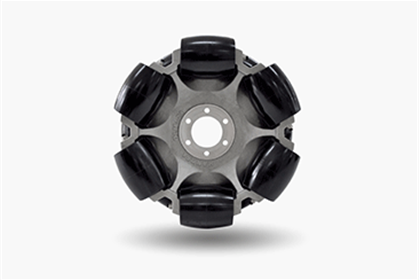

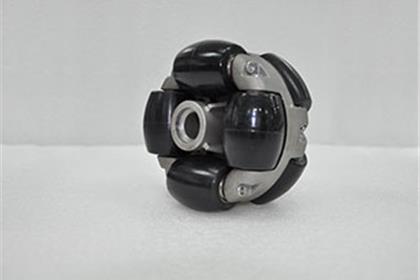

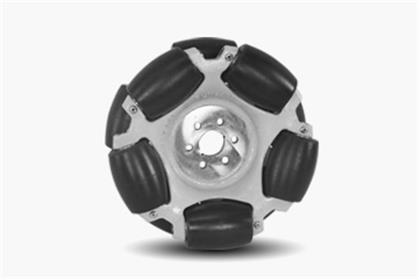

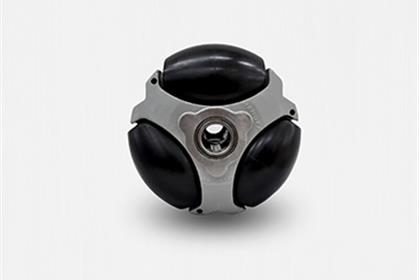

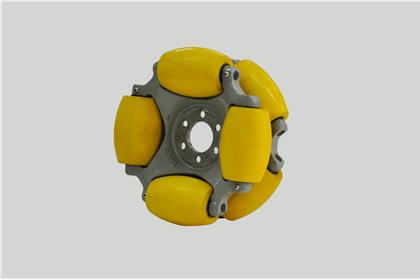

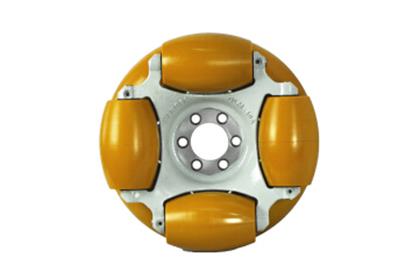

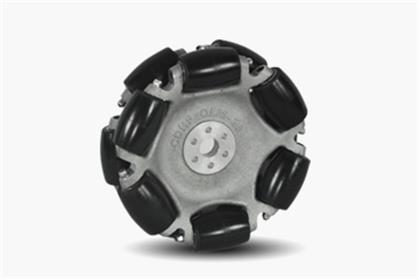

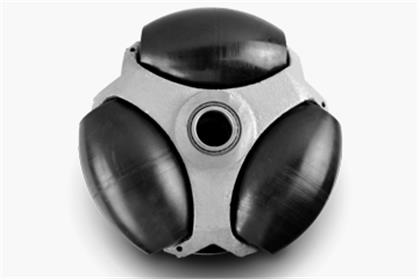

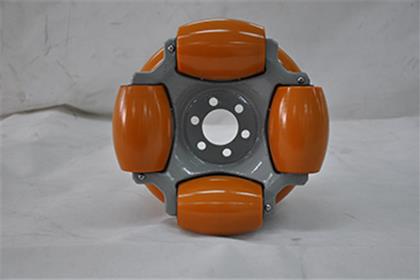

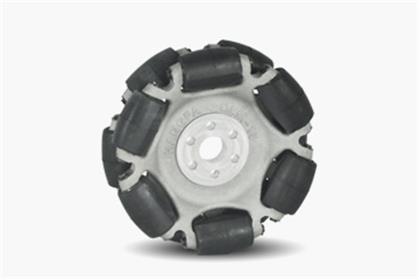

Product	Mecanum wheel QLM12	Mecanum wheel QLM15	Mecanum wheel QLM20	Mecanum wheel QLM24	Mecanum wheel QLM25	Mecanum wheel QLM28	Mecanum wheel QLM31	Mecanum wheel QLM36	Mecanum wheel QLM40	Mecanum wheel QLM40A
Diameter(mm)	120	152.4(6")	203.2(8")	240	254	280	310	360	406.4(16")	406.4
Wide(mm)	80	56	75	107	133	227	161	257	180	210
Wheels	8	12	12	12	8	6	8	6	10	8
Bearing Type	Rolling Bearing
Wheel Material	Rubber/Polyurethane			Polyurethane
Hub Material	Aluminum				Steel
Hub Surface Treatment	No Treatment				High-Temperature Painting
Mount	Bearing Supports	Flange
Typical Middle Hole Size(mm)	19/20/22 Driving 8/10/12/15Driven	20			45		55	70
Weight(kg)	2	0.94	2.2	12.5	11	28	37	44	45	53
Load(kg)	100	50	100	200	450	800	800	1500	1200	1600

Integrated molding process hub , high intensity ,high stiffness: This wheel uses integrated molding process, maximizing the mechanical properties of materials integrated molding process hub , high intensity ,high stiffness, reliable and long lifetime durable.
Rolling Bearing: Compared to sliding bearings and products without bearings structure, QLM series omni wheel, which adopts rolling bearing design, hasadvantage such as little friction, high precision ,high reliability ,convenient fix, and it can be suitable for the continuous use.
Payload between 0-2000KG: this series can load 2000KG maximum.
Industrial-grade quality: design and manufacture in accordance with industry standard.
