Mecanum wheels HMA Series

HMA series omni wheel can supply 1500kg payload maximum, while maintaining high accuracy. This wheel adopts driven wheels as the supporting structure. The hub uses integrated molding process, maximizing the intensity, stiffness and precision.  HMA series omni wheels with rolling bearings and polyurethane roller can adapt to various indooor and outdoor occasions.

Product Mecanum wheel HMA31

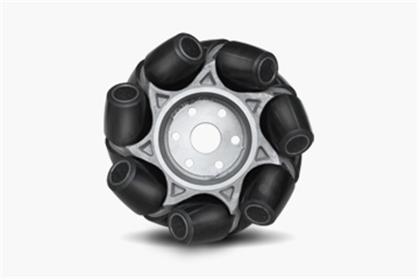

Mecanum wheel HMA31

Mecanum wheel HMA40

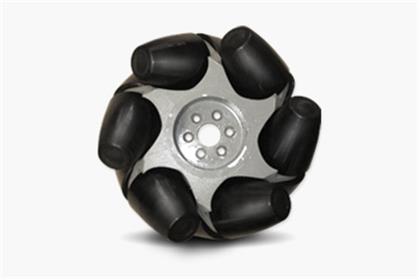

Mecanum wheel HMA40

Diameter(mm) 310 406.4(16")
Wide(mm) 150 234
Wheels 7×2 6×2
Bearing Type heavy duty Rolling Bearing
Wheel Material Polyurethane
Hub Material Aluminum steel
Hub Surface Treatment High-Temperature Painting
Mount Flange
Flange Plate Thinckness(mm) 18.5 27
Flange Plate Diameter(mm) 112 131
Flange Cavity Inner diameter(mm) 126 139
Typical Middle Hole Size(mm) 45 45
Weight(kg) 16 45
Load(kg) 600 1300

  • Integrated molding process hub, high intensity,high stiffness: This wheel uses integrated molding process, maximizing the mechanical properties of materials integrated molding process hub , high intensity ,high stiffness, reliable and long lifetime durable.
  • Rolling Bearing: Compared to sliding bearings and no bearings structure ,HMA series omni wheel use rolling bearing design . (to achieve ) It’s little friction, high precision ,high reliability ,convenient fix and it can be suitable for the continuous use.
  • Load capacity between 0-1300KG: The load capacity of this series can be 0-1300KG.
  • Better passing performance: The supporting structure of driven wheel, which makes the wheel hub less likely to touch the ground, improved the ground adaptability and passing performance of the Omni wheel.
  • Industrial-grade quality: Design and manufacture in accordance with industry standard.
